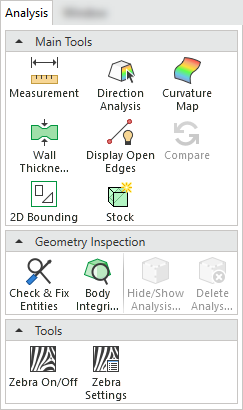

Analysis Menu

The following functions appear under the Analysis menu.

Menu Section	Function	Description
Main Tools	Measurement	Measure distance, angles, curvature and general data of objects and entities.
Main Tools	Direction Analysis	Analyze selected faces and visualize their draft angle with reference to a defined direction.
Main Tools	Curvature Map	Map the different curvature radii of faces and then color the faces giving each range of radii a different color.
Main Tools	Wall Thickness Analysis	Analyze the wall thickness of objects.
Main Tools	Display Open Edges	Control the visibility of open edges. Display or hide any open edges in entities.
Main Tools	Compare	Compare and detect changes between the active part (original) and a selected (reference) part. These changes can then be edited and the model consequently updated.
Main Tools	2D Bounding	Create a 2D (projected) Bounding Box contour around selected entities. Pick one or more 2D contours and the system finds the tightest square, circle, or enclosing polygon that completely surrounds the selected contour(s).
Main Tools	Stock	Obtain the overall size of a part or create a bounding box (stock) around it.
Geometry Inspection	Check & Fix Entities	Analyze the integrity of geometry, view the results and enable problematic entities to be fixed.
Geometry Inspection	Body Integrity Analysis	Analyze various geometry quality issues of a selected B-rep object.
Geometry Inspection	Hide/Show Analysis Marks	Hide or show the analysis marks created by the last used analysis operation. The markings are areas indicated as problematic during the analysis.
Geometry Inspection	Delete Analysis Marks	Delete selected analysis marks created by the last used analysis operation. The markings are areas indicated as problematic during the analysis.
Tools	Zebra Shading On/Off	Turn Zebra Shading On/Off. This function is useful for visual smoothness assessment.
