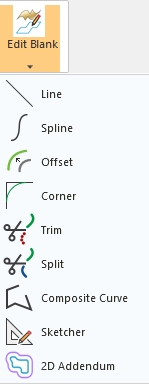

Edit Blank

Blank a set of adjacent stitched and skinned faces on the extension of other sets of faces, using finite element analysis (FEA).

Item	Description
Line	Create a line.
Spline	Create a spline.
Offset	Create one or more curves by offsetting a 2D or 3D curve. The offset is can either be a constant or variable distance from the original curve.
Corner	Create a sharp, round or chamfer corner between curves.
Trim	Trim curves by geometry.
Split	Split one or more curves by a point, curve, face, or datum plane.
Composite Curve	Create a contour from a series of curves/edges.
Sketcher	The Cimatron Sketcher is the graphic environment used to create 2D parametric geometry.
2D Addendum	The 2D Addendum creates an offset path around a blanked part to add extra material around the perimeter.
