Nesting

Create nesting for a single part. This function enables you to create additional instances of one forming shape and place them in the X direction of the active UCS of the strip sub-assembly.

This function includes the following options:

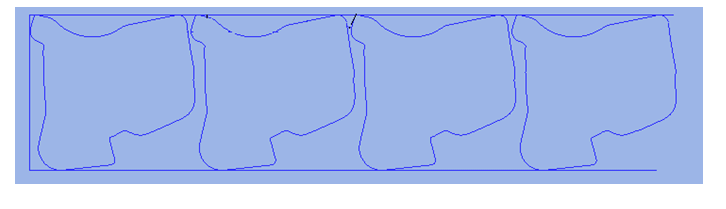

One RowOne Row: In this case the die application produces one part in every operation.

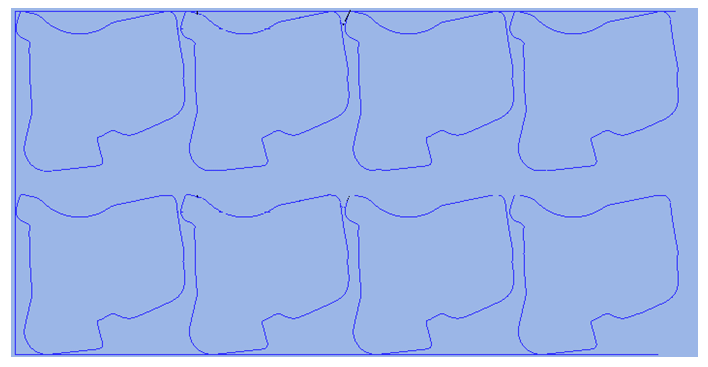

Two RowsTwo Rows: In this case the die application produces two identical parts in every operation.
Part and Mirror (two rows)

Process

The following is the Feature Guide for Nesting - One Part.

Tip: You can open the Feature Guide at any time by right-clicking the mouse in the graphic display area.

Required Step 1 : Pick the 2D wire body.

Required Step 2 : Define the nesting parameters.
