Display Datums
Control the visibility of datum entities.
-
Hide all datums (UCS, planes and axes) of a component.
-
Show all datums (UCS, planes and axes) of a component.

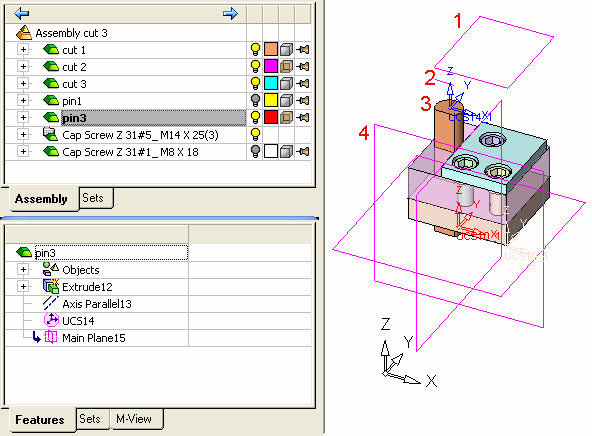

This example shows the datum types that can be shown or hidden:
-
A plane associated with the main assembly - Assembly cut 3.
-
An axis associated with the component pin3.
-
A UCS associated with the component pin3.
-
Main planes associated with the component pin3.
